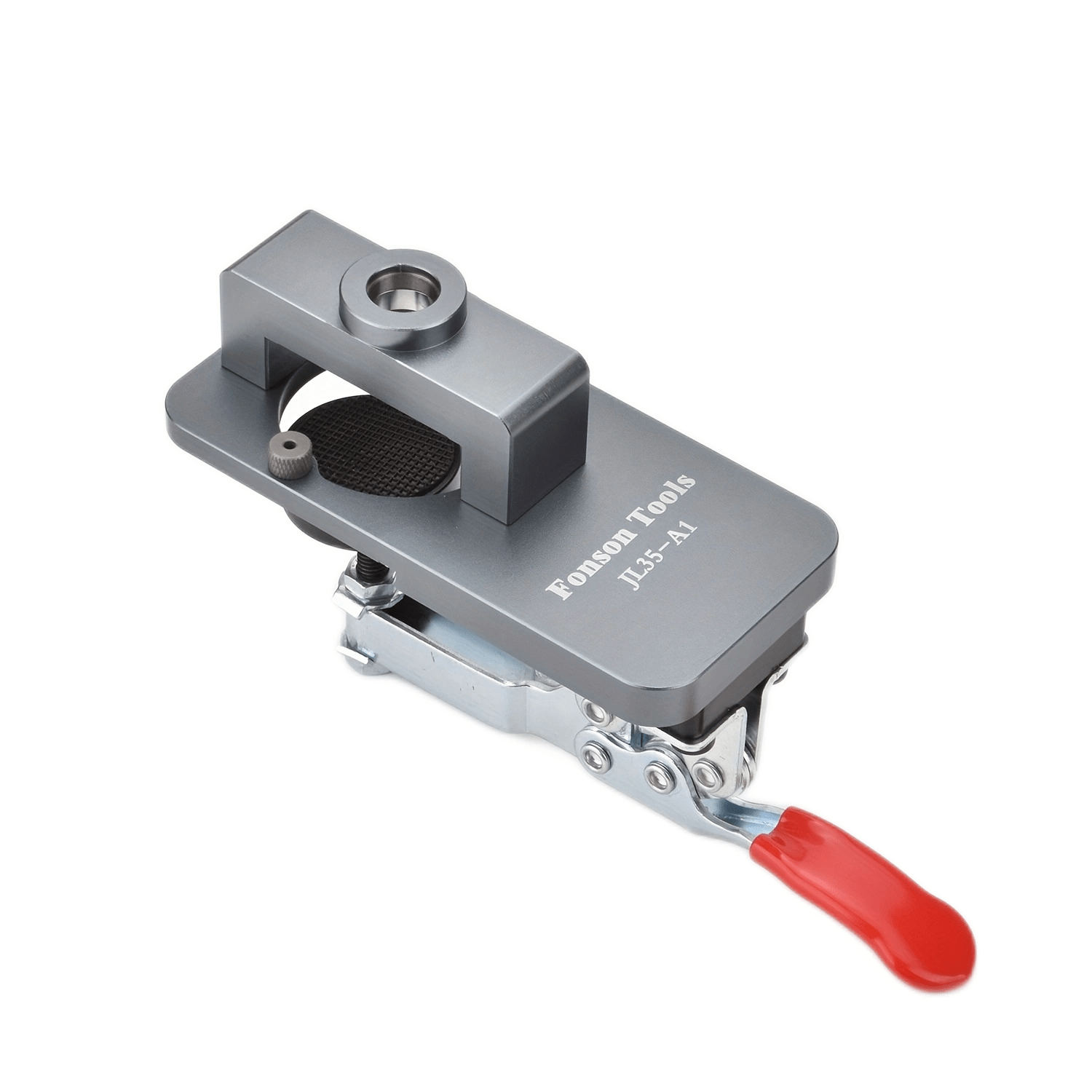

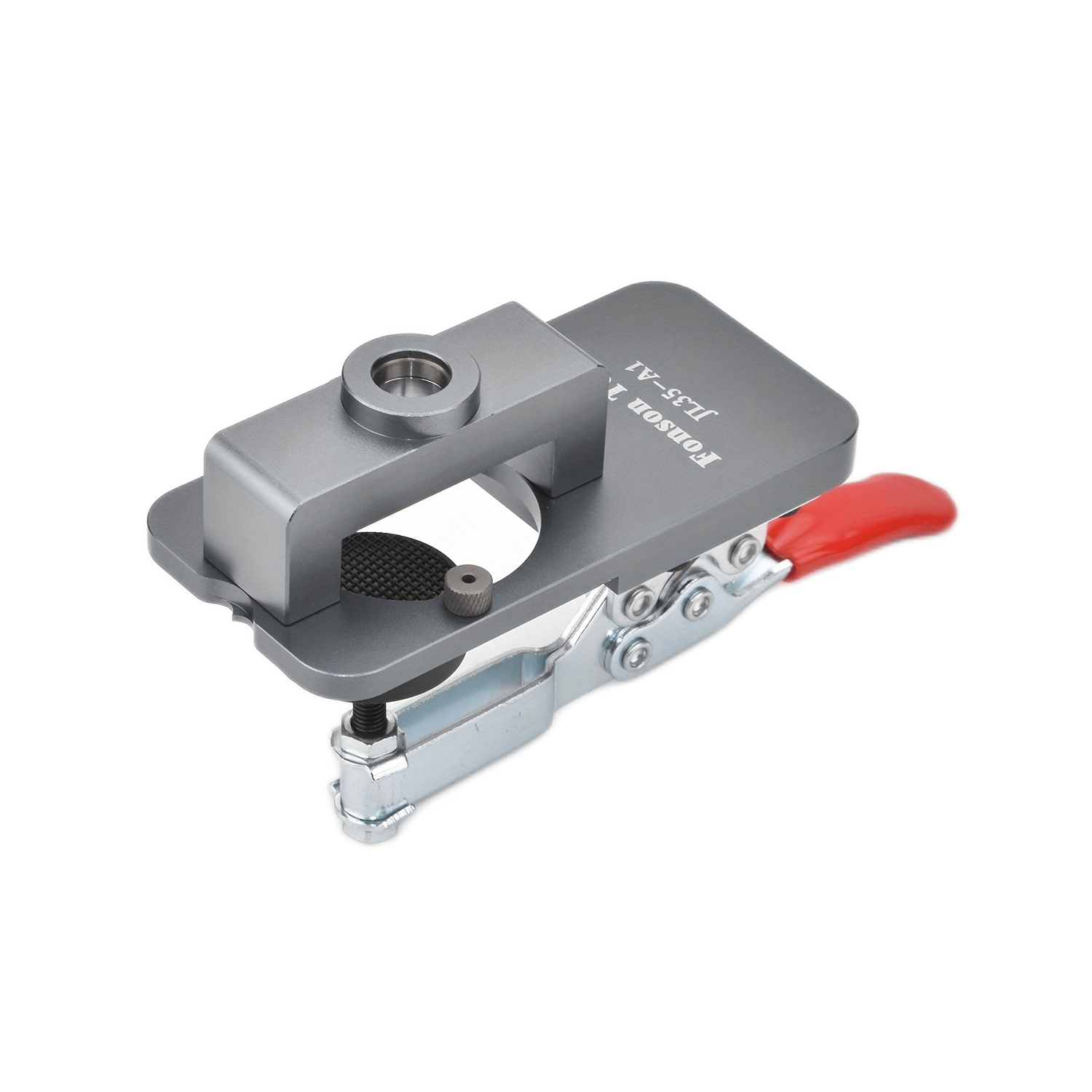

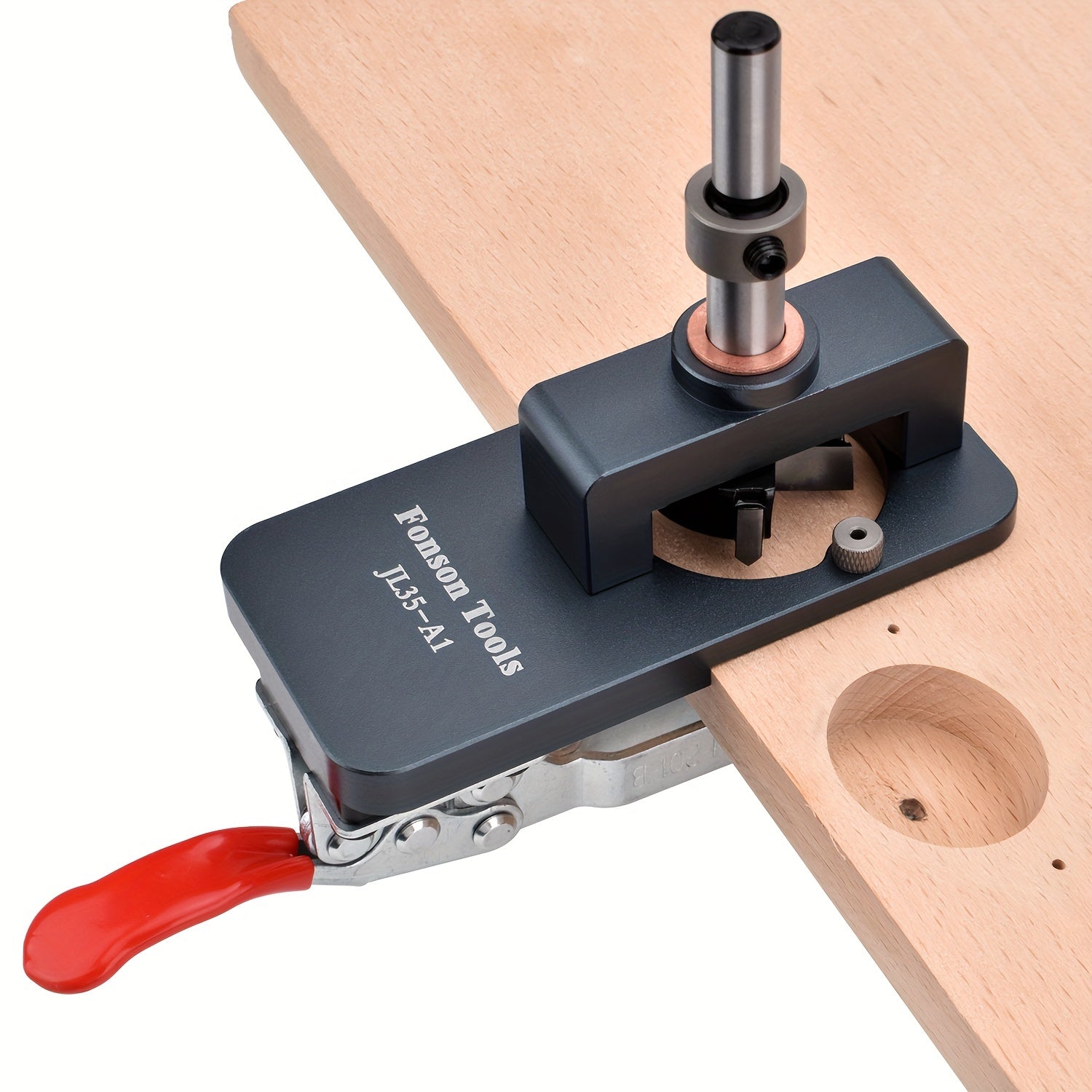

Set hinges cleanly and with consistent accuracy using a sturdy 35 mm drilling template made of aluminum. The template is securely fixed to the workpiece and supports precise drilling for cup hinges in furniture and kitchen doors. The set is designed for woodworking and regular use in workshops or DIY projects.
Benefits
Precise 35 mm drill guide: Designed for cup hinges and helpful for consistent, clean hinge holes.

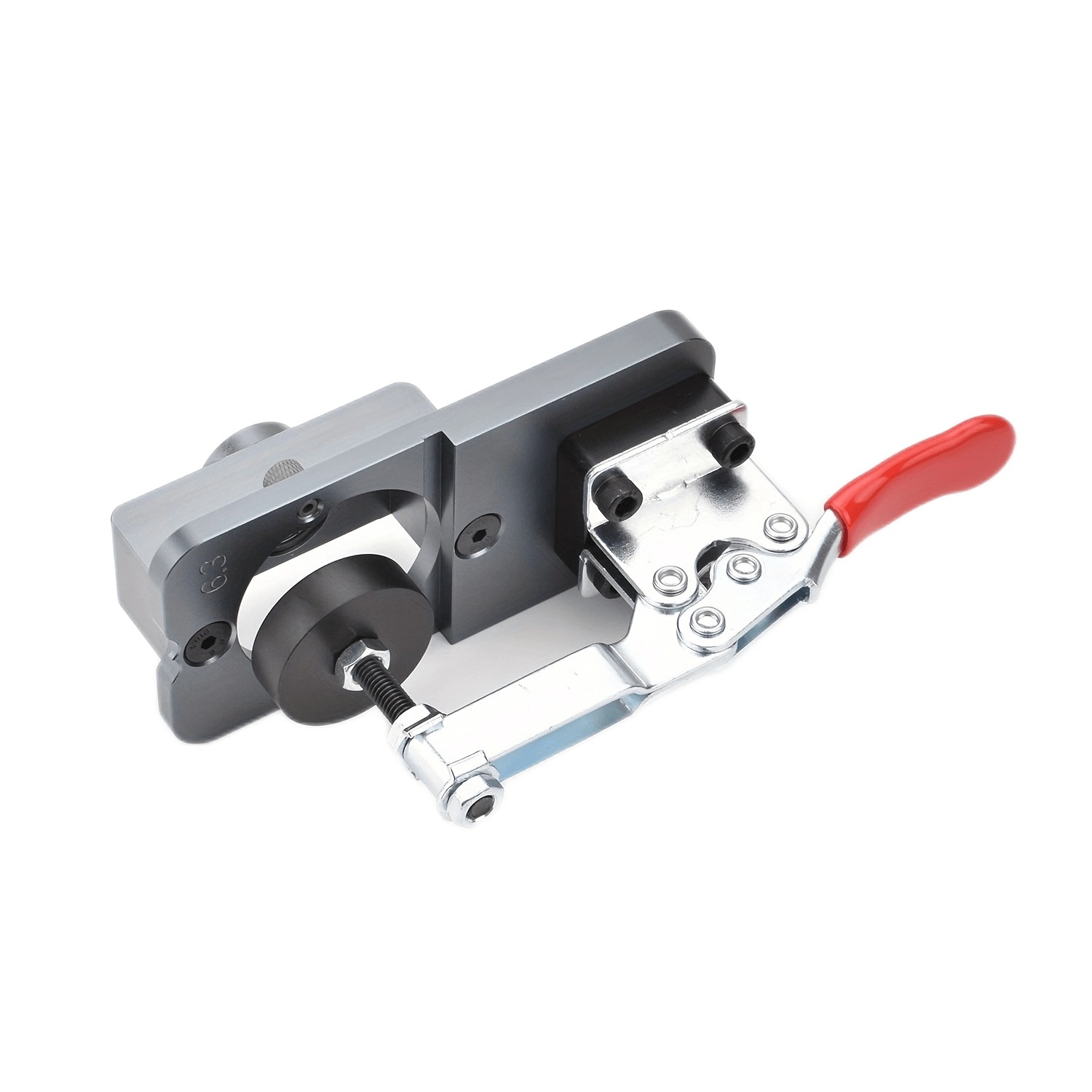

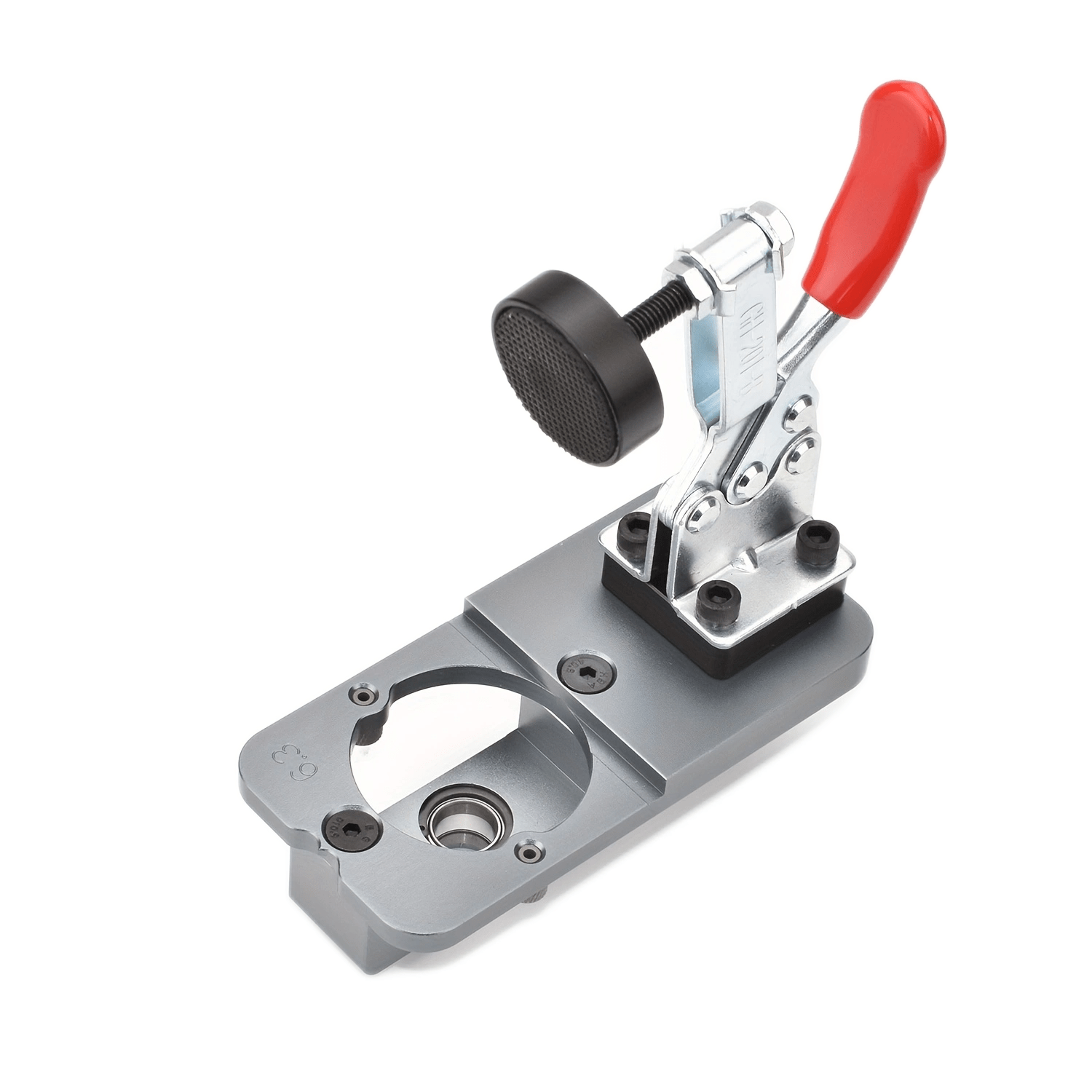

Sturdy quick-release clamp: Reliably secures the workpiece and reduces slipping during drilling.
Robust aluminum construction: Dimensionally stable and suitable for frequent use in assembly and woodworking.
Ready to use immediately: Includes 35 mm drill bit, small drill bit, and tool accessories for a quick start.
Specifications
Product type: Cup hinge drilling template
Material: Aluminum alloy, metal
Application: Woodworking, furniture assembly, door hinge installation
Drill diameter: 35 mm

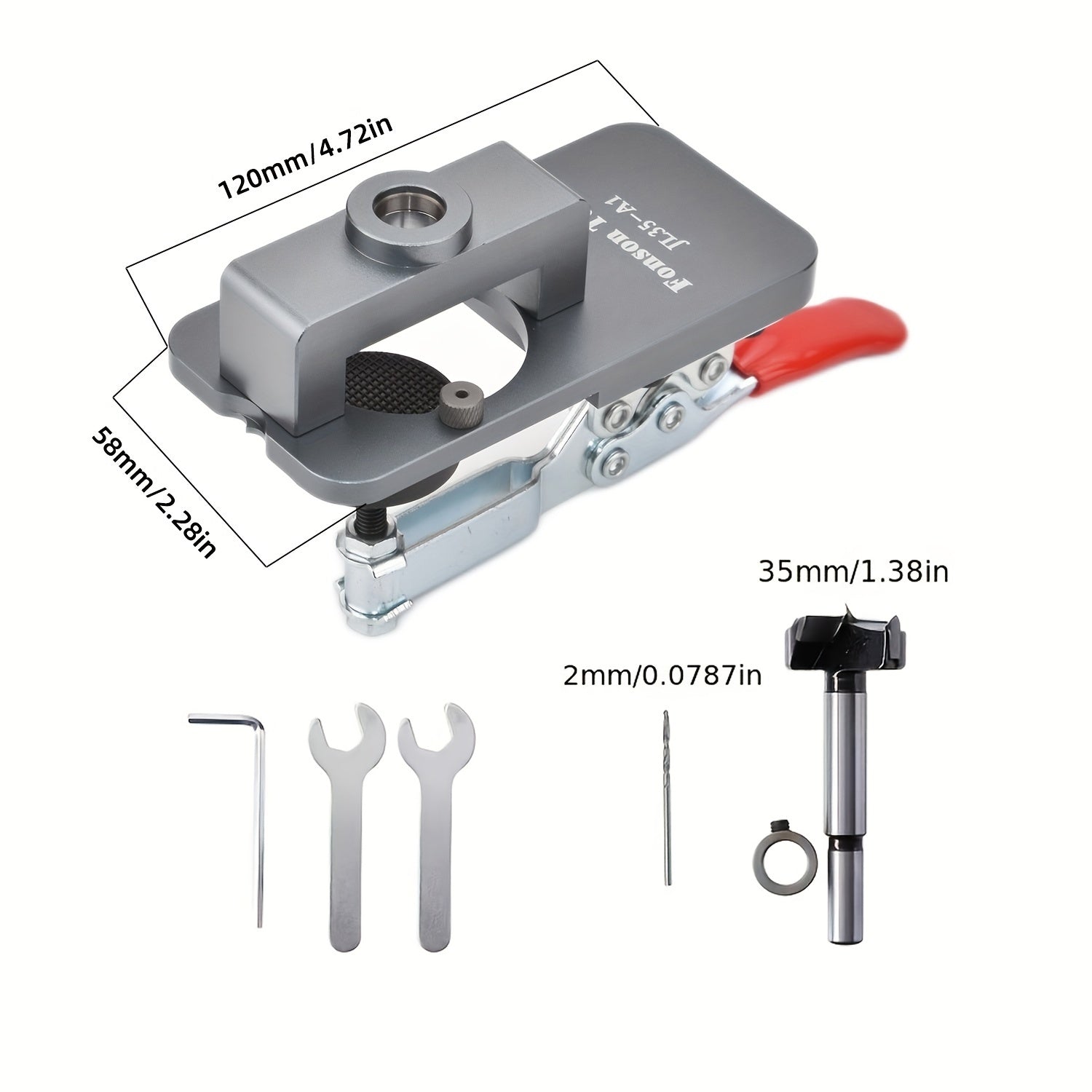

Tool length: approx. 120 mm
Tool width: approx. 58 mm

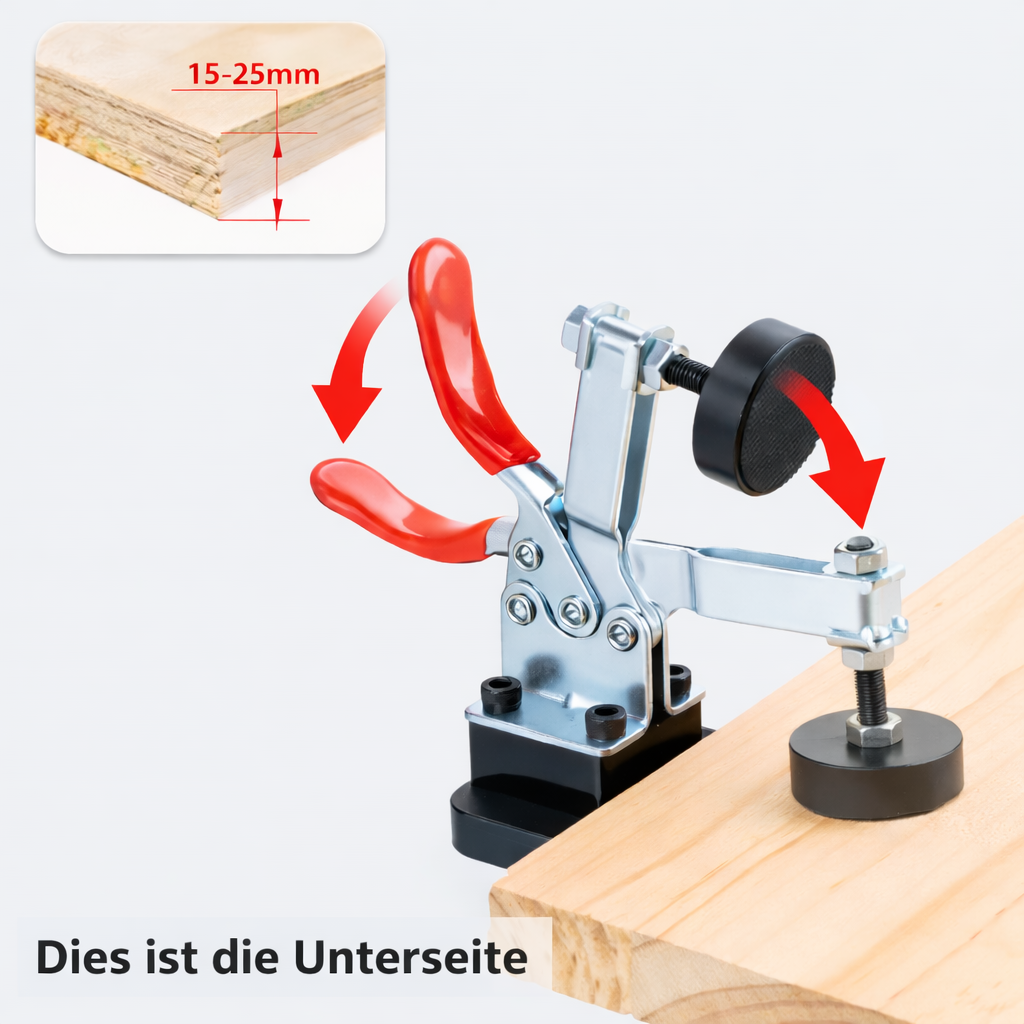

Suitable material thickness: approx. 15–25 mm
Power supply: Manual, no power needed

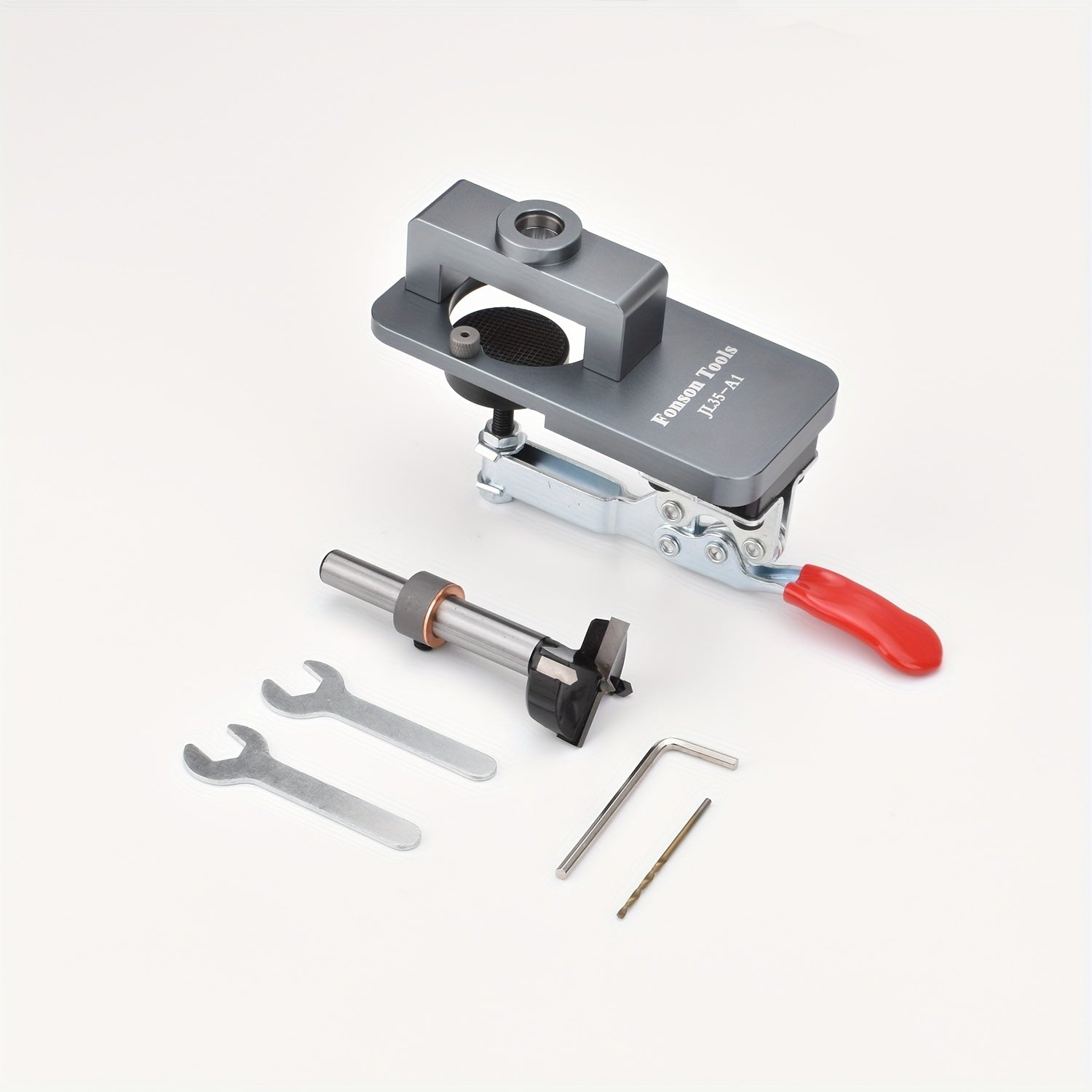

Accessories: 35 mm Forstner bit, small drill bit approx. 2 mm, Allen key, 2 keys, spacer ring
Usage
- Place the template in the desired position on the door or panel.
- Tighten the quick-release clamp so that the template is securely fixed.

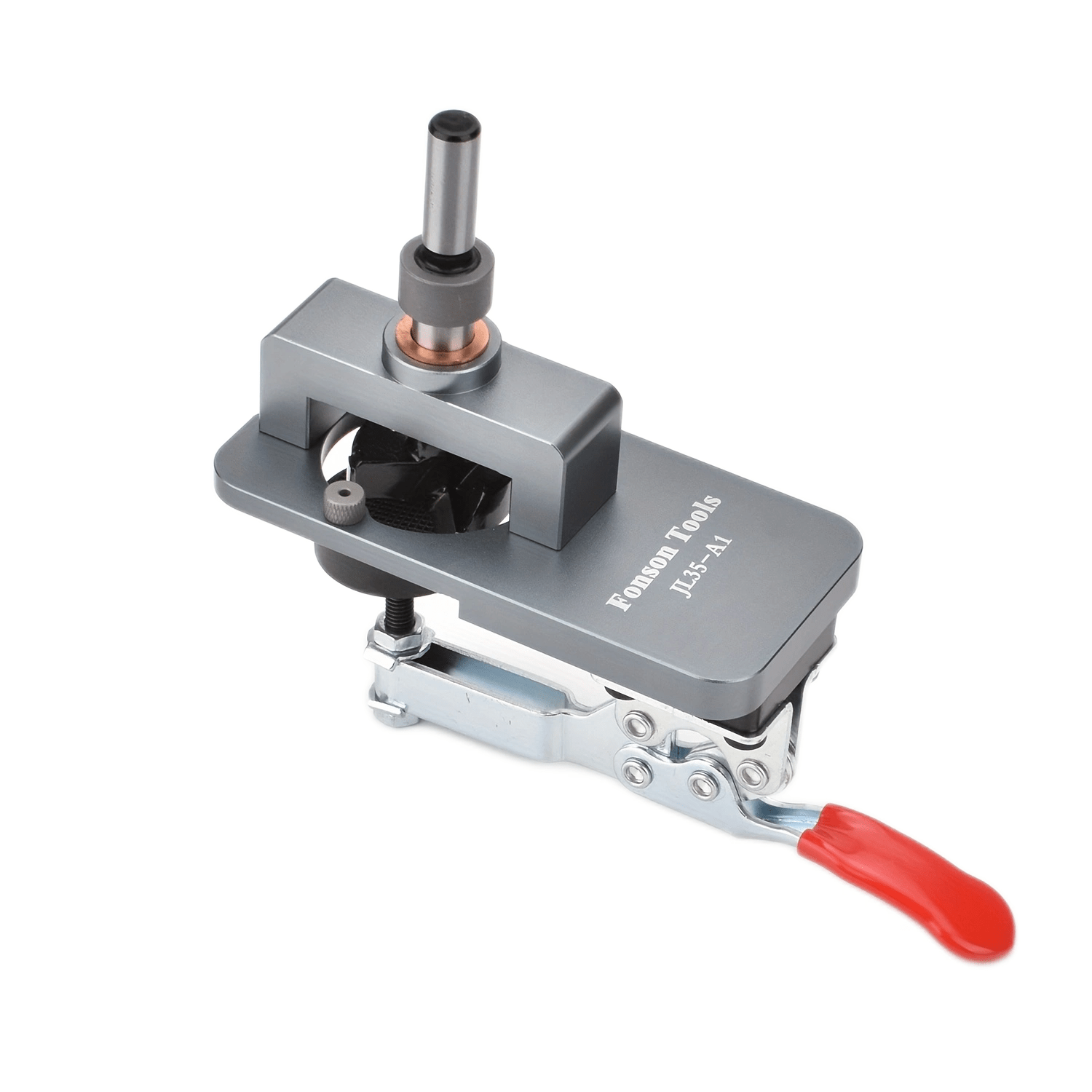

- Insert the 35 mm drill bit and drill the cup hole evenly.
- Release the template and then insert the hinge.
Tip: Use medium speed and even pressure to achieve a clean drill hole and reduce edge splintering.
